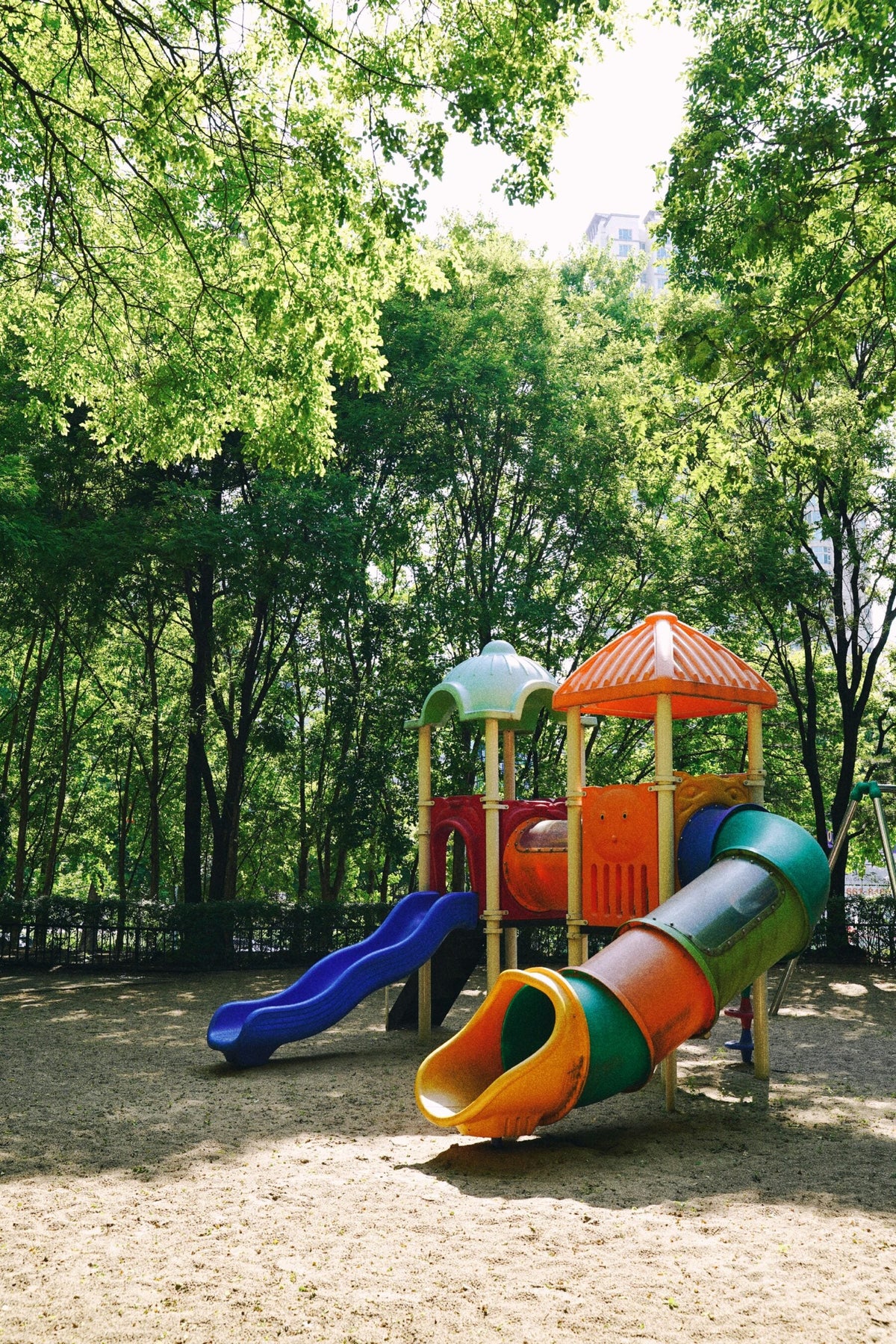

Engineered Wood Fiber Playground Surfacing: Depth, Cost and Upkeep

Engineered wood fiber is the most common playground safety surface in the United States: a processed wood product that meets ASTM F2075, is tested to ASTM F1292, and costs about $4 to $8 per square foot installed. It needs a maintained depth of at least 9 inches, which means installing about 12 inches because it compresses at least 25 percent with use. It is also the surface most often installed wrongly, maintained badly and assumed to be compliant when it is not.

What is engineered wood fiber?

Engineered wood fiber is virgin wood processed into fibrous strands of a controlled size and shape that knit together under foot traffic, forming a surface firm enough to roll a wheelchair across and loose enough to absorb a fall.

It is not bark mulch and not landscape chips. That knitting property is the whole point, and it is why the cheap alternative is no substitute. Landscape mulch is chunky, does not knit, decomposes faster, and can contain treated or dyed material you do not want children falling into. CPSC specifically warns against wood mulch made from CCA treated lumber, or mulch where the CCA content is unknown.

The three standards that define it

• ASTM F2075 is the material specification. It sets requirements for particle size (sieve analysis), consistency, purity, drainage, hazardous metals (including arsenic, lead, chromium and mercury) and tramp metal such as nails and staples.
• ASTM F1292 is the impact test. It gives the product a critical fall height at a stated depth.
• ASTM F1951 is the accessibility test. It measures the effort needed to push a wheelchair across the surface, straight and turning.

The CPSC handbook asks every EWF manufacturer to provide F1292 critical height data, minimum fill depth data, toxicity data, F1951 accessibility data and maintenance requirements. If a quote says "playground mulch" rather than engineered wood fiber with those reports, ask which one you are actually buying.

How deep should engineered wood fiber be?

Engineered wood fiber should never be maintained at less than 9 inches of compressed depth, and the depth your site needs is set by the product's ASTM F1292 test at your equipment's fall height.

CPSC Table 2 credits 9 inches of compressed wood chips with protecting to a 10 foot fall height, and 9 inches of non-CCA wood mulch to 7 feet. EWF is not listed separately, because each product is tested on its own. In practice most EWF specifications we see call for 12 inches installed, but taller decks or a product with a weaker test result can require 12 inches compressed, which means installing closer to 16.

Situation	Maintain at least	Install about	Source of the number
CPSC minimum for any wood loose fill	9 inches	12 inches	CPSC handbook, 25% compression
Product tested to need 9 inches at your fall height	9 inches	12 inches	Manufacturer's F1292 report
Product tested to need 12 inches at your fall height	12 inches	16 inches	Manufacturer's F1292 report

Note the word compressed. EWF settles and consolidates by at least 25 percent over time. Install exactly 9 inches on day one and you are under the line by the following summer. CPSC suggests marking the target depth on equipment posts so anyone can see when it has dropped.

How much engineered wood fiber do I need?

To calculate engineered wood fiber volume, multiply the use zone area in square feet by the installed depth in feet, then divide by 27 to get cubic yards.

Take a play structure with a 33 by 21 foot footprint. With the standard 6 foot use zone on every side, the surfacing area is 45 by 33 feet, or 1,485 square feet. Price the use zone, not the footprint. It is the most expensive mistake in playground budgeting, and our playground surfacing options comparison walks through it for every surface type.

Step	Math	Result
Use zone area	45 ft x 33 ft	1,485 sq ft
Install 12 inches (maintain 9)	1,485 x 1.0 / 27	55 cubic yards
Install 16 inches (maintain 12)	1,485 x 1.33 / 27	73 cubic yards
Material, delivered	55 to 73 cu yd x $30 to $55	$1,650 to $4,015
Top up 3 inches of loss	1,485 x 0.25 / 27	About 14 cubic yards

Swings change the shape of the zone. CPSC extends the use zone in front of and behind single axis swings to twice the pivot height, so add that area separately before you convert to yards.

How much does engineered wood fiber cost?

Engineered wood fiber costs roughly $30 to $55 per cubic yard delivered in bulk and $4 to $8 per square foot installed, including excavation, drainage stone, geotextile fabric and spreading.

On the 1,485 square foot example, installed cost lands between $5,940 and $11,880. The spread comes from haul distance, whether the material is blown in from a truck or spread by hand, how much excavation the site needs, and whether drainage pipe is required.

The ten year view

EWF is the cheapest compliant surface to install by a wide margin. Its real cost is in upkeep, mostly labor, which is why it suits organizations with grounds staff and punishes those without. Over ten years on our example, budget the original install plus two or three top-ups of 10 to 20 cubic yards each, plus regular raking. Poured in place rubber over the same area would cost $20,790 to $35,640 up front with far less labor. For a larger school site, a full top-up typically runs $1,500 to $6,000.

Is engineered wood fiber ADA accessible?

Engineered wood fiber can be ADA accessible when the specific product passes ASTM F1951 and the surface is kept compacted, level and at depth, but it only stays accessible with frequent maintenance.

The 2010 ADA Standards for Accessible Design require ground surfaces on accessible routes in play areas to comply with ASTM F1951, and surfaces within use zones to also meet ASTM F1292. The U.S. Access Board's play area guide says ground surfaces must be inspected and maintained regularly and frequently, and notes that engineered wood fiber in particular will require frequent maintenance to stay compliant. It also caps the slope of a ground level accessible route at 1:16.

What that means on site:

• Compact on install. EWF is typically installed in lifts, wetted and compacted with a roller or plate so it knits before the first child arrives.
• Get across the border. A 12 inch border is a 12 inch step. The accessible route needs a ramp over it.
• Protect the route. Wear mats at the entry, at transfer stations and under swings cut displacement where wheels and feet land most.
• Consider a hybrid. Where the route must be firm every day of the year, use poured rubber or tiles for the route and EWF for the rest of the zone.

Our ADA playground requirements guide covers how many ground level and elevated components the route has to reach.

How should engineered wood fiber drain?

Engineered wood fiber needs a free draining base, because CPSC says standing water reduces effectiveness and speeds compaction and decomposition.

A typical drained installation excavates the area, slopes the subgrade toward a drain, places 4 to 6 inches of clean washed stone, covers it with geotextile fabric to keep fiber out of the stone, and runs perforated pipe to daylight or a drywell. The fabric matters: without it, fiber works down into the stone and the drainage layer clogs within a few seasons.

Sites with clay soil, ledge or a low spot need this most, and that describes a lot of school and town land in New England. If puddles sit in the landing zones a day after rain, fix the drainage before you pay for a top-up. New fiber over a wet base simply rots faster. Our playground installation page covers how we scope site prep and drainage with an equipment order.

Why most installations fail within four years

Migration

It moves. Under swings and at slide exits it moves fast, because that is where feet land hardest and most often, and those are also the points with the highest fall height. Within two seasons you can have 12 inches across the zone and 4 inches at the swing landing.

Compaction

It settles under traffic evenly and slowly. The surface still looks like a playground surface. It just no longer absorbs a fall from the height it was specified for.

Nobody measures

Depth is invisible from standing height. Unless somebody pushes a ruler into it at several points, an out of compliance playground looks identical to a compliant one.

What good maintenance looks like

1. Measure depth quarterly at a minimum of four points inside each use zone, always including under each swing and at the base of every slide.
2. Rake the high traffic points weekly in busy seasons and at least monthly otherwise, moving material from the edges back to the landing zones.
3. Top up every three to five years and carry it as a recurring budget line, not a surprise.
4. Keep the containment intact. A failed border edge is how a use zone quietly loses inches across the whole area.
5. Check drainage after heavy rain and look for pooling in landing zones.
6. Close it when frozen. CPSC notes that frozen loose fill can lose much of its impact attenuation, and recommends children not play on the equipment when it is frozen solid.
7. Record it. Dated, signed depth measurements are the document you want if the surface is ever questioned.

Our playground inspection and maintenance guide has the full inspection schedule and checklist.

Where engineered wood fiber is the wrong choice

• No grounds staff and no maintenance budget. It will go out of compliance and nobody will notice.
• Poor drainage that cannot be fixed. It will rot and pack down.
• An accessible route that must be reliably firm every day. Use a unitary surface for the route.
• Very heavy all day use, such as a large municipal park, where migration outpaces realistic raking.

Frequently asked questions

How deep should playground mulch be?

CPSC says loose fill under playground equipment should never be maintained below 9 inches of compressed depth, except shredded rubber at 6 inches. Because engineered wood fiber compresses at least 25 percent, install about 12 inches to hold 9. If the product's ASTM F1292 report requires 12 inches at your fall height, install closer to 16.

How much does engineered wood fiber cost?

Engineered wood fiber typically costs $30 to $55 per cubic yard delivered in bulk and $4 to $8 per square foot installed with excavation, drainage stone and fabric. A 1,485 square foot use zone at 12 inches needs 55 cubic yards and costs roughly $5,940 to $11,880 installed, depending on haul distance and site prep.

How often does engineered wood fiber need to be topped up?

Plan on a top-up every three to five years, with raking of swing and slide landing zones weekly in busy seasons. Measure depth quarterly at four or more points per use zone. Losing 3 inches across a 1,485 square foot zone means about 14 cubic yards of new material.

Is engineered wood fiber the same as playground mulch?

No. Engineered wood fiber is processed virgin wood that meets ASTM F2075 for particle size, purity and drainage and is tested to ASTM F1292 for impact attenuation. Landscape or bark mulch is chunkier, does not knit into a firm surface, decomposes faster and may contain treated or dyed wood. Always ask for the test reports.

Is engineered wood fiber wheelchair accessible?

It can be. The product must pass ASTM F1951, the test the 2010 ADA Standards reference for accessible play surfaces, and it must be kept compacted and level. The U.S. Access Board notes that engineered wood fiber needs frequent maintenance to stay compliant, so many sites use a unitary surface for the accessible route.

Can you install engineered wood fiber over concrete or asphalt?

CPSC strongly recommends against playgrounds over hard surfaces. Where it cannot be avoided, the handbook describes a layered build: 3 to 6 inches of loose fill such as gravel for drainage, geotextile cloth, then the full depth of loose fill, with impact mats under swings and at slide exits.

Where can I buy playground mulch near me?

For a public or commercial playground, buy engineered wood fiber from a supplier that provides ASTM F2075, F1292 and F1951 test reports, not bagged landscape mulch from a garden center. Bulk delivery or blower trucks are usual for anything over a few cubic yards. We quote EWF with equipment orders across New England and beyond.

Spec it right the first time

Engineered wood fiber is an excellent surface that behaves like a maintenance commitment rather than a purchase. Bought with clear eyes and a rake, it is the best value in playground surfacing. We confirm each structure's critical fall height and use zone before the order ships, and we quote EWF, drainage and playground borders with the equipment as one number. Send us the site to get started.
